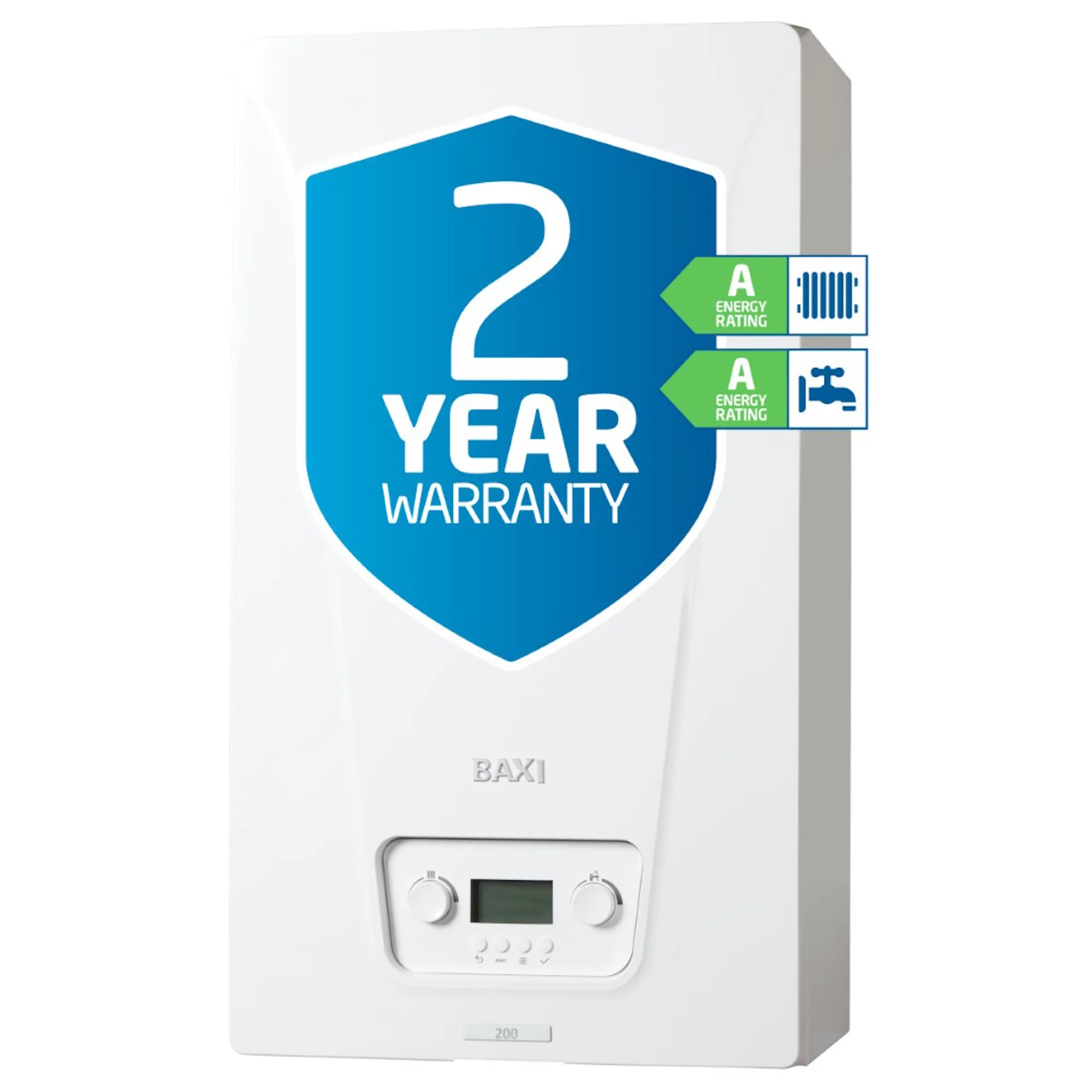

Baxi 200 224 24kW Combi 2 Boiler – 7790612

• Output: 24kW
• 2 year parts and labour warranty
• Lightweight and compact
• Water heating efficiency class: A
• Heats radiators and delivers hot water to taps
• Only heats the water needed
• Energy efficient
• Cupboard fit
• Certified to work with 20% hydrogen to reduce carbon emissions in the future
• User Adjustable DHW temperature – Range – 35° to 60° (+- 5C)
• User Adjustable CH temperature – Range – 25° to 80° (+- 5C)
• Temperature / Fault Diagnosis Display

Baxi 200 Combi 2 24kW boiler combines the latest boiler technology into a compact and lightweight design.

Ask a Gas Safe registered heating engineer to survey the property and advise on the appropriate boiler

Technical:

• Top central flue position
• Hanging bracket to fit simply on uneven walls
• Lift weight: 26.5kg
• Stainless steel heat exchanger
• Heats water effectively
• Internal pressure gauge
• Combined PVR and drain
• Optional stand-off frame
• Certified to work with 20% Hydrogen
• Compatible with OpenTherm

Dimensions:

• Width: 395mm
• Height: 700mm
• Depth: 285mm
• Side clearance: 5mm
• Upper clearance: 178mm
• Lower clearance: 200mm
• Front clearance: 6mm in operation, 450mm for servicing
